Battery Holder Systems
Cell testing made easy
We understand that configuring thermal chambers and setting up cells can be time-consuming. But what if there’s a more efficient solution?
The battery Holder system is a custom solution for your thermal chamber. Let us know the size of the chamber and the cell sizes you are testing. We will then provide a custom built system to fit into your chamber.
Similar sized cell testing cards can be mixed and matched in the chamber, giving greater flexibility
With quick change cell testing cards, tedious chamber wiring is the thing of the past
Designed with chamber airflow in mind, ensuring proper airflow over the cells
Custom-design for each thermal chamber, maximising testing space & equipment usage
We have a number of standard cell testing cards that are currently available for the battery holder system. But due to the wide variations in cell sizes and shapes, we offer bespoke solutions to enable you to test the cells you require. Have a look at the type of products we offer:
More information...

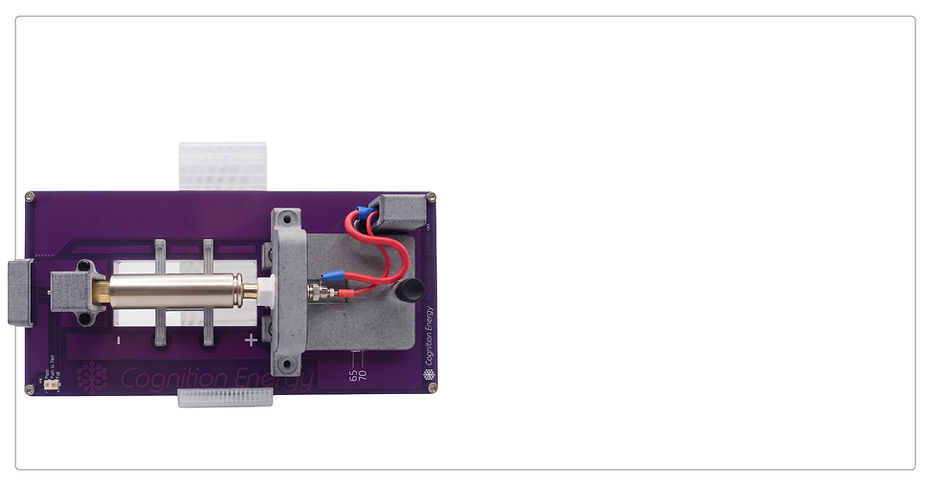

The Small Cylindrical
-
60A maximum continuous current
-
100A maximum pulse current
-
Less than 1mΩ total contact resistance
-
4 Wire connection for voltage sense
-
Integrated thermistor temperature sensor connection
-
Thermocouple temperature sensor available on request
-
Robust, easy to use design
Suitable for 21700, 18650 & 26650 cylindrical cells. Designed for convenience, it ensures quick changeovers and accurate results.
More information...
The BIG Cylindrical
-
200A maximum continuous current
-
450A maximum pulse current
-
Less than 1mΩ total contact resistance
-
4 Wire connection for voltage sense
-
Integrated thermistor temperature sensor connection
-
Thermocouple temperature sensor available on request
-
Robust, easy to use design
Our adjustable testing holder for cylindrical cells sized 4680 to 46120. Test multiple cell sizes with ease using just one holder.
More information...
The Pouch
-
60A maximum continuous current
-
100A maximum pulse current
-
Less than 1mΩ total contact resistance
-
4 Wire connection for voltage sense
-
Integrated thermistor temperature sensor connection
-
Thermocouple temperature sensor available on request
-
Alternative tab configurations available
-
Constant pressure / constant gap compression plates included
Custom-sized holders tailored specifically for your pouch cell project. These versatile holders simplify the testing process.
More information...

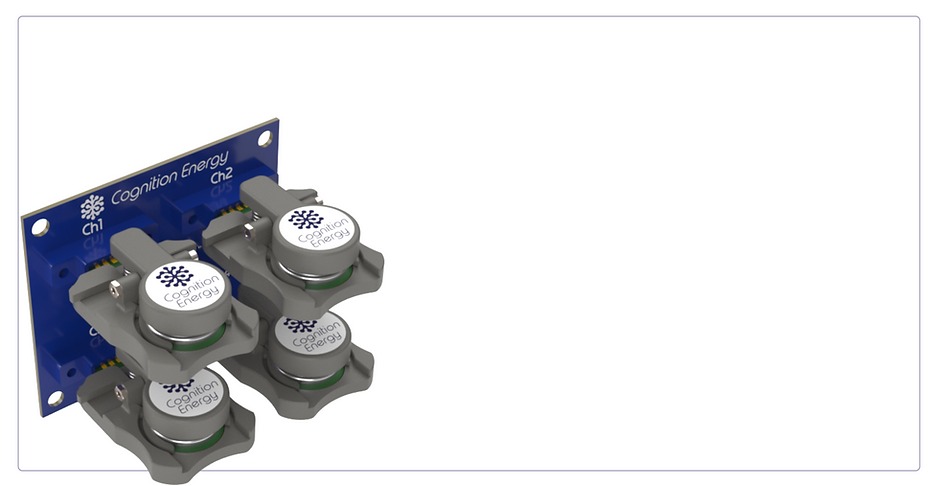

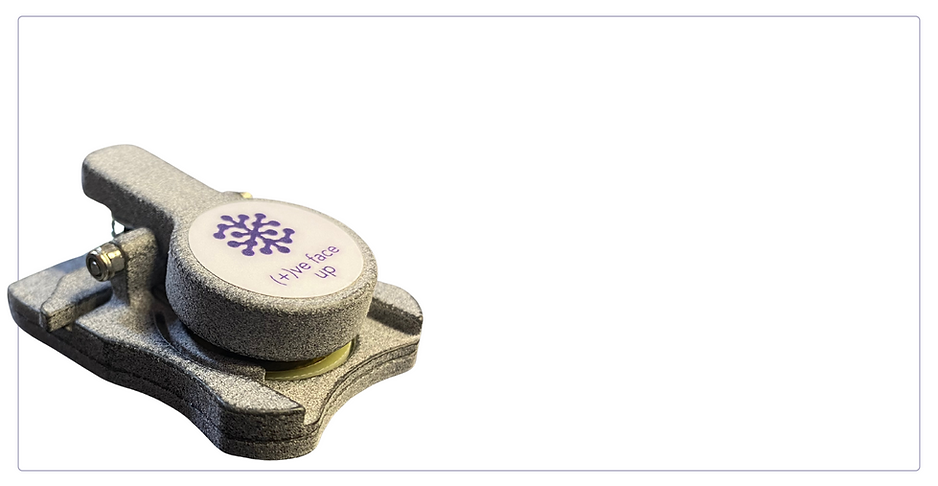

The Coin
-
2A maximum current
-
Less than 1mΩ total contact resistance
-
4 Wire connection for voltage sense
Suitable for 2016 & 2032 coin cells, this holder makes testing small cells a breeze.
